EC/TDS/Temp Meter WP MILWAUKEE

C59: Pocket EC, TDS and Temperature Meter from Martini Instruments Milwaukee Instruments

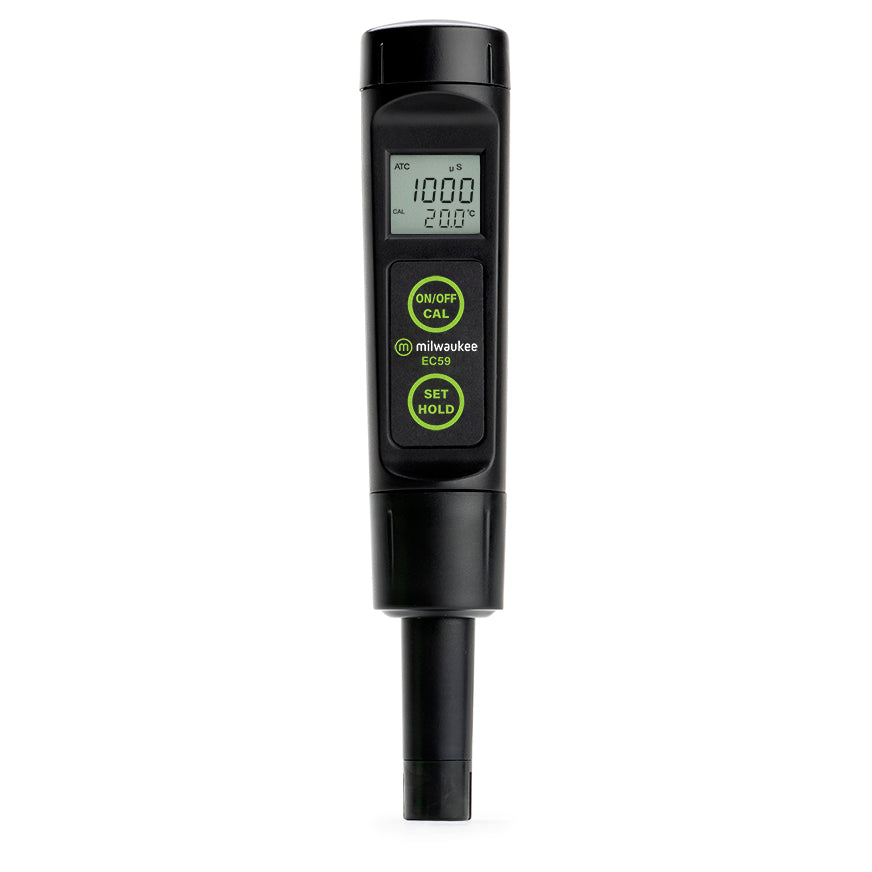

The EC59 is a multifunctional pocket meter for measuring Electro Conductivity (EC), Total Dissolved Solids (TDS) and temperature. This waterproof device is ideal for a wide range of applications, including agriculture, hydroponics, fish farming, aquariums, swimming pools, laboratories, water treatment, food and education. Equipped with a replaceable probe, the EC59 offers accurate measurements and features advanced features such as temperature compensation, battery indicator, stability indicator, auto power off, and auto calibration.

EC59 Meter Features

• Two-line LCD display showing EC values ​​up to 3999 µS/cm or TDS up to 2000 ppm.
• Temperature range from 0.0 to 60.0°C (32.0 to 140.0°F), allowing measurements in various environments.

EC59 Meter Operation

To use the EC59:

1. Remove the protection from the probe.
2. Turn on the meter by pressing the ON/OFF/CAL button.
3. Immerse the meter in the liquid to be measured, preferably in a glass to stabilize the sample.
4. Let the meter compensate the temperature automatically.
5. To freeze the reading, press and hold the SET/HOLD button.
6. To switch between EC and TDS modes, briefly press the SET/HOLD button.
7. Turn off the meter by pressing the ON/OFF/CAL button.

EC59 Meter Calibration

To calibrate the EC59:

1. Press and hold the ON/OFF/CAL button until the "OFF" message is replaced by "CAL."
2. Release the button to enter calibration mode.
3. Immerse the meter in a calibration buffer with a value of "1413uS".
4. The meter will indicate "OK" once calibrated in uS, and will automatically be calibrated in TDS (ppm) as well.

For additional questions or assistance, please do not hesitate to contact us. We hope you enjoy an accurate and reliable measurement experience with the EC59!
