Lumatek Control Panel Digital HID and LED 2.0 – Control Panel for Indoor HID and LED Luminaires

Lumatek Plus 2.0 Digital Control Panel (HID+LED)

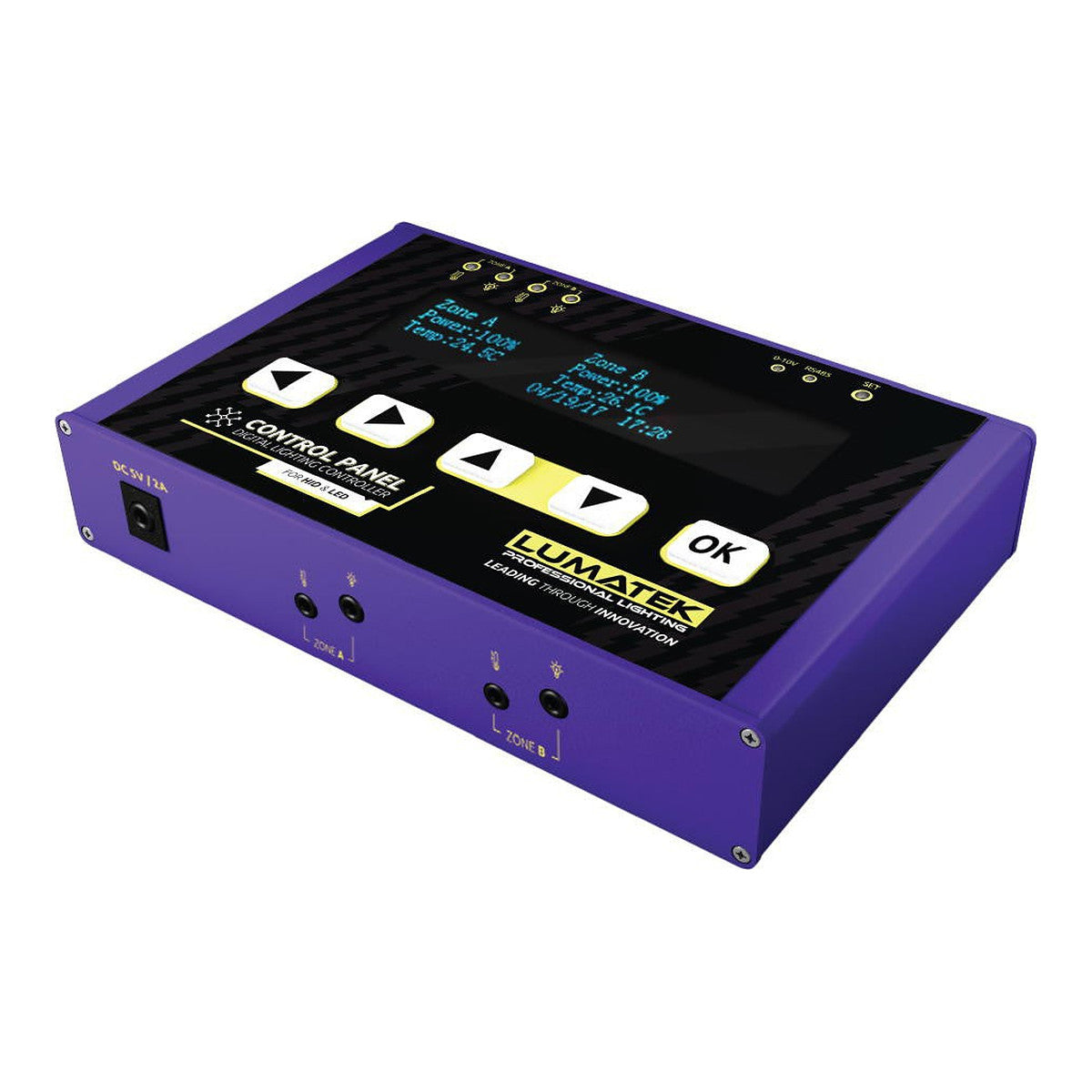

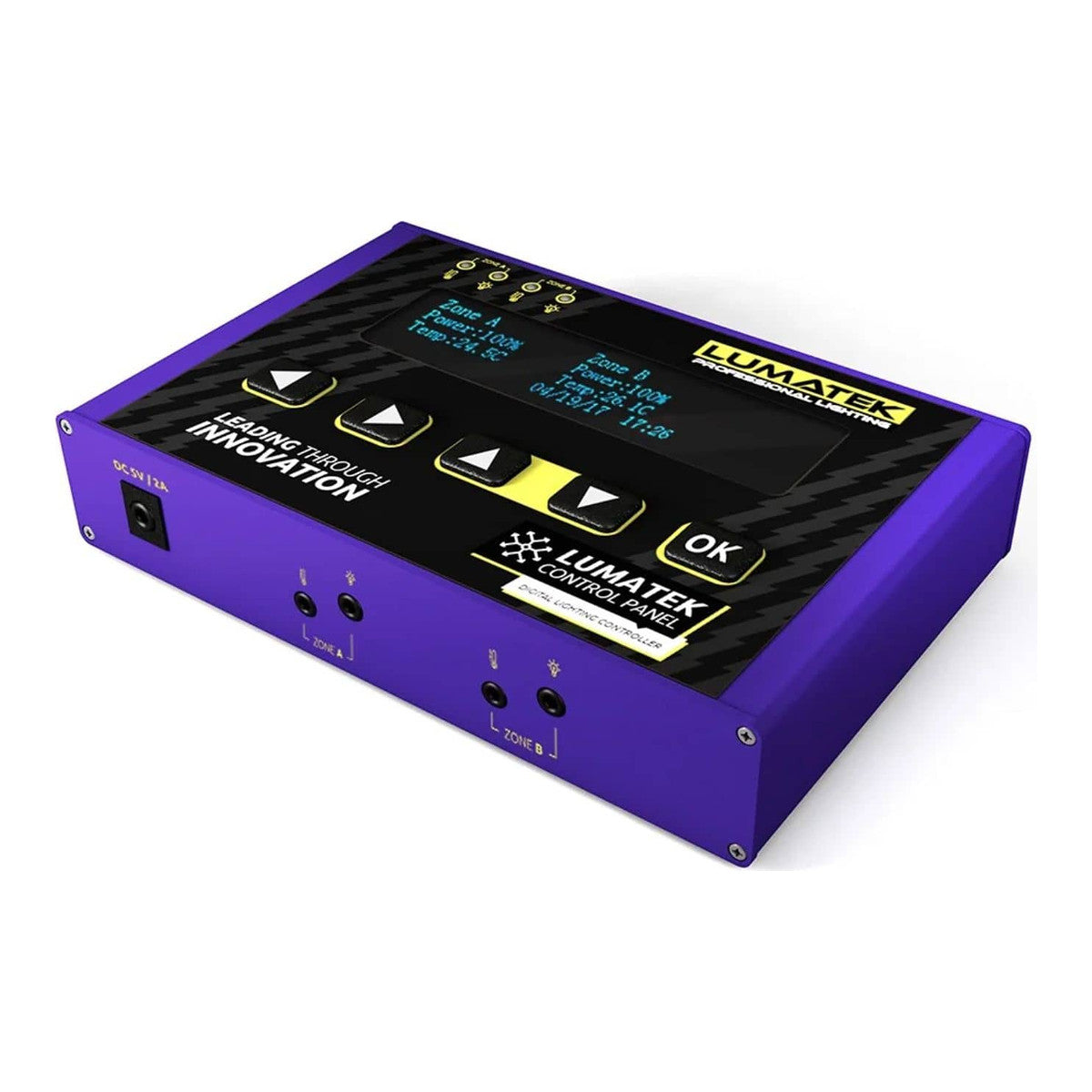

The Control Panel Digital HID and LED 2.0 Lumatek is a dual-signal digital lighting controller that offers precise external control of all your Lumatek lighting fixtures, drivers and ballasts. A complete and professional solution to manage your indoor cultivation with total precision, automation and security.

How does the Lumatek 2.0 Digital Control Panel work?

Thanks to its innovative technology, this panel intelligently monitors the conditions of your grow room by automating all lighting parameters:

• Intelligent grow room temperature monitoring
• Control and synchronization of light times (24 hours)
• Light intensity automation
• Safety controlled dimming on/off
• Sunrise and sunset simulation (0-30 minutes)

Features of the Digital HID and LED 2.0 Control Panel

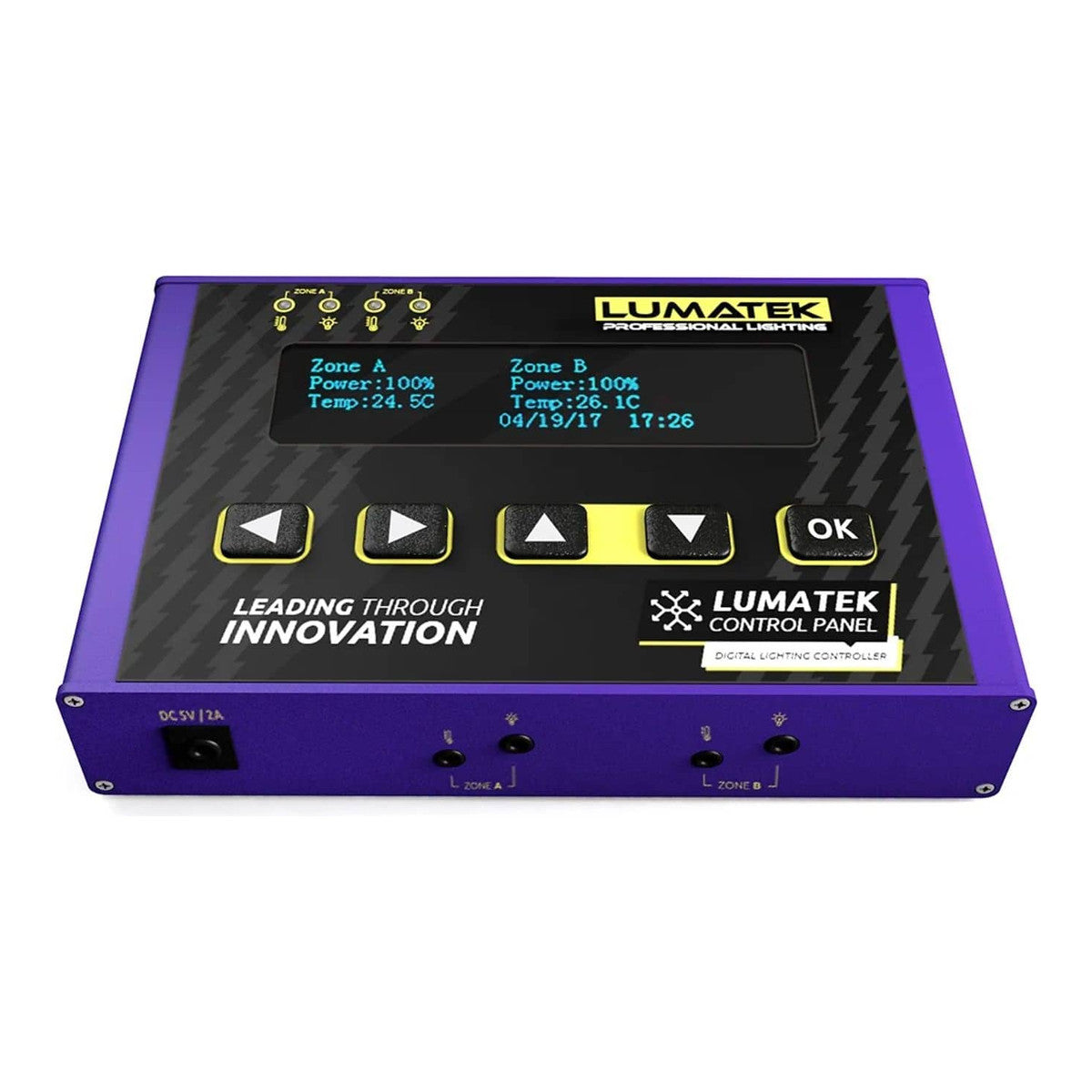

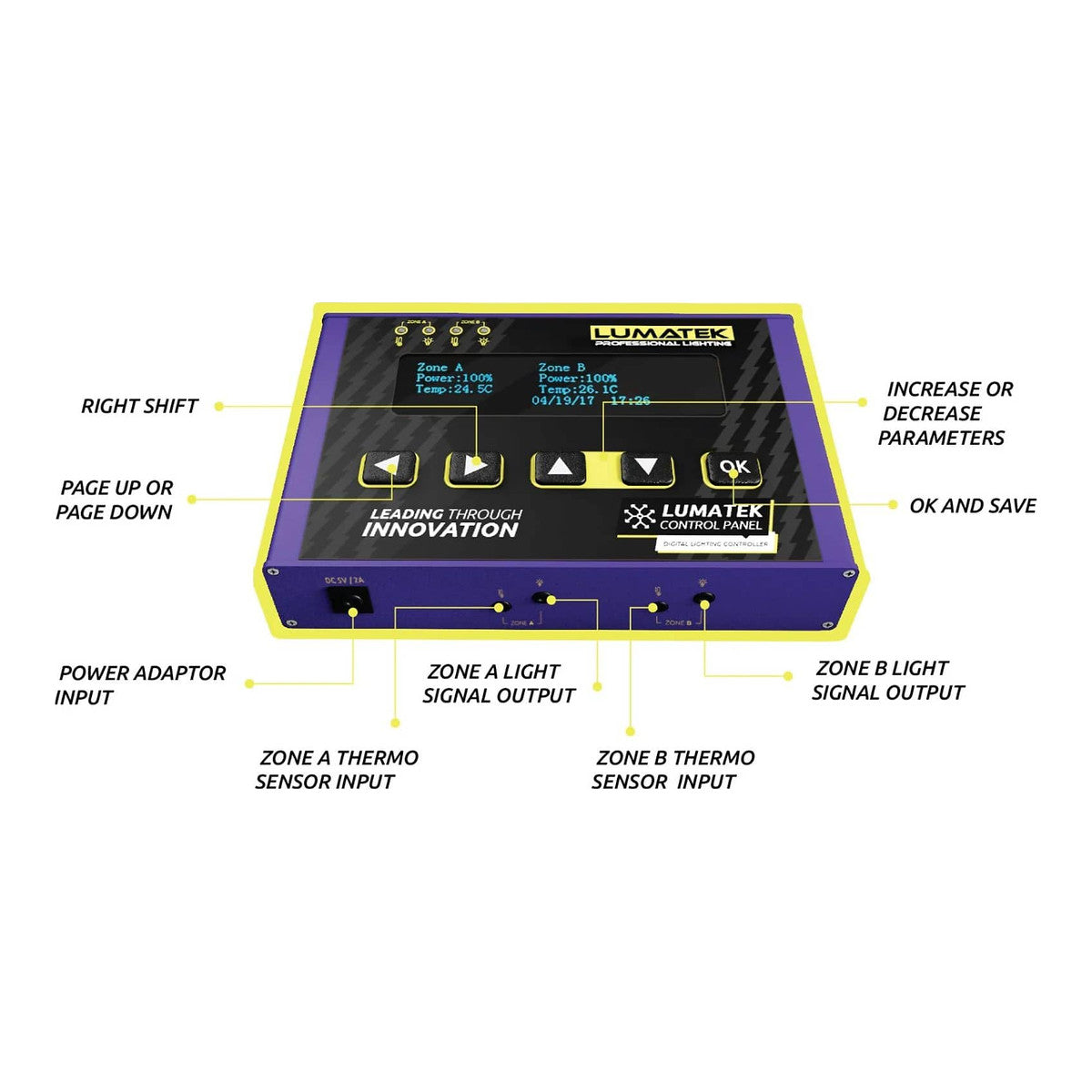

The panel emits double signal and has two independent channels (Zone A and Zone B), with a wide control capacity in each zone:

• Control up 200 HID ballasts per zone using RS485 digital signal
• Control up 50 LED drivers per zone with analog signal 0-10V
• Total capacity up to 400 HID ballasts or 100 LED drivers per panel
• Each zone can work differently completely independent, ideal for managing two grow rooms from a single device

Compatibility

Compatible with the full range of Lumatek controllable products:

• HID Ballasts: 315W, 600W, 630W and 1000W
• LED drivers: 90W, 465W, 600W and 1000W

Technical Specifications

• Power: Adapter 100-240V AC 50/60Hz – DC 5V/2A
• Power dimming range: 10% – 115%
• Power regulation accuracy: 1%
• Temperature safety dimming range: 0ºC – 40ºC
• Temperature safety switching range: 10ºC – 50ºC
• Sunrise and sunset duration: 0-30 minutes
• Dimensions: 125mm x 80mm x 25mm
• Control panel for up to 400 HID ballasts or 100 LED drivers

Package content

• 1x Lumatek Plus 2.0 Digital Control Panel
• 1x Power adapter and cable
• 2x Temperature sensor with 5m cable
• 2x HID Control Link Cable (5m)
• 2x LED Control Link Cable

At GrowIndustry we only work with products of proven quality and trusted brands.

Each item goes through a check before shipping to ensure you receive it in perfect conditions and ready to use.

Your satisfaction is our priority.

1. Conecta el adaptador de corriente al panel y enchúfalo a una toma de 100-240V AC.
2. Enlaza los balastos HID Lumatek a la Zona A y/o Zona B mediante los cables de control HID RS485 incluidos.
3. Conecta los controladores LED Lumatek con los cables de enlace LED analógicos 0-10V proporcionados.
4. Instala los 2 sensores de temperatura en la sala de cultivo para activar la protección automática.
5. Configura desde el menú los horarios de encendido/apagado, la atenuación de potencia y la duración del amanecer/atardecer.
6. Verifica que el panel detecta todos los dispositivos y ajusta los parámetros de cada zona de forma independiente según tus necesidades.
