How to choose the best extractor fan for a grow tent
Choose a grow tent extractor It is not about buying the model with the highest flow rate or copying another grower's equipment. The extractor must renew the air, evacuate heat, help control humidity and overcome the resistance generated by the carbon filter, ducts and elbows. If it falls short, it will work at maximum without stabilizing the climate; If it is oversized without regulation, it can dry the environment too much, generate noise and create excessive depression.
Quick answer: calculate the volume of the closet by multiplying length, width and height; decide if you want to renew the air every one, two or three minutes; Multiply the result by 60 and add between 30% and 80% margin for filter, ducts, elbows and heat. Choose the diameter compatible with the installation and, whenever possible, an adjustable or multi-speed model.
Why the advertised flow rate doesn't tell the whole story
The flow rate of an extractor is normally expressed in cubic meters per hour, but that figure is usually measured under favorable conditions, without all the resistance that you will find in a complete installation. When you add a carbon filter, several meters of flexible conduit, diameter reductions or tight bends, the effective flow rate decreases.
The objective is not to chase an isolated figure, but to achieve a stable climate. To check this, you should measure temperature and humidity at the height of the canopy and observe how they change with the lights on, after watering, and at night. The article about VPD in indoor cultivation It will help you interpret both values together.
How to calculate the necessary flow rate step by step
1. Calculate the interior volume
Multiply the length by the width and by the height, always in meters. A closet measuring 1.20 x 1.20 x 2 meters has a volume of 2.88 m³. Use the actual interior measurements if the equipment, filters or trays greatly reduce the useful space, although for a first approximation the nominal dimensions of the cabinet are sufficient.
Cabinet volume = length x width x height.
2. Define the renewal frequency
Then decide how often you want to renew that volume of air. Renewing it every three minutes can serve as a reference in a cool environment, with efficient lighting and low thermal load. Every two minutes is a balanced starting point for many LED setups. Renewing every minute offers more responsiveness when the lighting generates a lot of heat, the room is warm or the crop is heavily loaded.
The practical formula is: base flow = volume x 60 / minutes per renewal. In the example of 2.88 m³, a renewal every two minutes requires a theoretical 86.4 m³/h; one renewal per minute raises the figure to 172.8 m³/h.
3. Add a realistic correction factor
The previous calculation does not consider losses. Multiply the base flow by a factor of 1.3 to 1.8 depending on the complexity of the installation. A short, straight setup without a filter can get closer to 1.3. If you use a filter, several elbows, a long duct or need to evacuate a lot of heat, it is advisable to get closer to 1.5 or 1.8.
| Wardrobe measurements | Volume | Theoretical flow rate at 1-2 min | Indicative selection range |
|---|---|---|---|
| 60x60x160cm | 0.58 m³ | 17-35 m³/h | Compact adjustable model; the upper commercial echelon is usually chosen |
| 80x80x160cm | 1.02 m³ | 31-61 m³/h | 80-150 m³/h depending on filter, heat and ducts |
| 100x100x200cm | 2 m³ | 60-120 m³/h | 120-220 m³/h with installation margin |
| 120x120x200cm | 2.88 m³ | 86-173 m³/h | 180-320 m³/h depending on thermal load |
| 150x150x200cm | 4.5 m³ | 135-270 m³/h | 280-500 m³/h with filter and regulation |
| 240x240x200cm | 11.52 m³ | 346-691 m³/h | 700-1,200 m³/h or more if the room is warm |
The ranges are indicative and assume that temperature, humidity and real depression will be reviewed. The exterior room, lighting and resistance of the installation may justify different values.
Factors that force extraction to be increased or regulated
Lighting heat and inlet temperature
Extraction can only cool to approximate the temperature of the incoming air. If the room is 29ºC, increasing the flow rate too much will not turn the interior into a 24ºC space. First you should improve the temperature of the room, schedule the photoperiod during cooler hours or use air conditioning. The extractor helps remove accumulated heat, but does not replace a cooling system.
Carbon filter, ducts and elbows
The filter must admit a flow rate equal to or greater than the real flow rate of the extractor. A filter that is too small creates a strong restriction, reduces renewal and can worsen odor removal. It is also not advisable to install an extractor much more powerful than the filter's working range, because the air can pass through the carbon too quickly.
In the ventilation ducts and accessories, prioritizes short routes, constant diameters and wide curves. A 90-degree elbow, crushed pipe, or sharp reduction increases pressure loss. Flexible conduit makes assembly easier, but should be as stretched as possible. When the outlet runs many meters, an extractor capable of maintaining pressure and not just a high vacuum flow is of interest.
Intraction and negative pressure
The closet should work with a slight negative pressure: the walls gently sink inwards and the air comes out through the filtered system instead of escaping through zippers and joints. If the walls deform too much, the passive intraction may be insufficient or the extraction may be excessively high.
What type of extractor fits best in each installation
Compact tubular extractors
Centrifugal or mixed flow models
Soundproof extractors and Foam Boxes
They integrate acoustic insulation around the turbine. They take up more space and weigh more, but they reduce the noise transmitted by the motor and casing. They are especially useful when the crop is close to bedrooms, offices or shared areas, and in rooms where a conventional extractor would have to work for many hours at high power.
Comparison of recommended models
| Model | Available flows | Control and construction | When to choose it |
|---|---|---|---|
| Duxfan Foam Box | 250-7,000 m³/h | Soundproofing foam box; external regulation | Rooms and closets where silence, variety of flows and future growth are prioritized |
| Can-Fan ISO-MAX | 410-4,800 m³/h depending on variant | Two turbines in soundproof tube; 3 speeds in 150 and 200 mm | Compact installations that require pressure, ease of assembly and low noise |
| Prima Klima UFO | 420-820 m³/h depending on model | Centrifugal extractor; versions with one or two speeds and with climate control | Small or medium-sized cabinets looking for a compact format and automation |
| Airfan Foam Box | 250-7,000 m³/h | foam structure; adjustable flow and optional remote control | Quiet setups, large rooms, or installations that must be scaled |
Duxfan Foam Box: great range and quiet operation
The Duxfan Foam Box Extractor It is offered from 250 to 7,000 m³/h, with connections that vary depending on the model. Its technical foam casing seeks to reduce vibrations and noise without giving up a high flow rate. It is an interesting option when you need to choose precisely between many power levels or want to leave room to expand the installation.
Can-Fan ISO-MAX: integrated silencer and compact mounting
The Can-Fan ISO-MAX It integrates two turbines inside a soundproof tube. The 150 and 200 mm versions incorporate three speeds, while the larger variants work at one speed and can be combined with compatible regulation. Its range covers from approximately 410 m³/h to 4,800 m³/h depending on the available model.
Prima Klima OVNI: compact option with automatic versions
The Prima Klima UFO Extractor It is available in diameters of 125 and 160 mm, with single speed, two speed and temperature control variants. Depending on the version, it offers flow rates of about 420 m³/h, 800 m³/h or 820 m³/h. Its centrifugal motor and compact format make it a practical alternative for small and medium-sized closets.
The climate control version is useful when you want the extraction to increase beyond the set value. Even so, the probe must be positioned correctly and the minimum speed must maintain sufficient renewal. Automating does not mean completely shutting down the system for long periods, especially with the lights on or in advanced flowering.
Airfan Foam Box: Scalability and optional control
The Foam Box Airfan Extractor covers from 250 to 7,000 m³/h. Its corrosion-resistant foam structure is designed to reduce noise and withstand prolonged operation. It has adjustable flow and a remote control option, which makes it easy to adjust the installation when the season, phase or density of the crop changes.
How to reduce noise without losing performance
Noise comes from three sources: engine, structural vibration and moving air. Buying soundproof equipment reduces the first, but the other two depend on the installation. Suspend the extractor with elastic straps or anti-vibration mounts, avoid the housing directly touching a wall, and use tight-fitting clamps. If the duct hits the structure, any vibration is amplified.
To reduce air noise, use the largest compatible diameter, avoid chokes, and do not place a tight bend right in the mouth. A larger fan running at 50-70% is usually quieter than a small one running at 100%, as long as the controller is compatible with your motor and does not produce humming noises. Do not use generic regulators without checking electrical compatibility.
Speed, temperature and humidity control
a good grow tent extractor It does not have to always operate at the same speed. In early growth a moderate flow rate may be sufficient; in flowering, after irrigation or during a heat wave, demand increases. The regulation prevents sudden changes and allows a constant minimum extraction to be maintained.
Simple controllers regulate speed manually. Automatic models react to temperature, humidity or both parameters. Set a minimum speed that renews air even when the weather is within the target and a maximum speed sufficient to correct peaks. To delve deeper into the relationship between both variables, review the guide temperature and humidity control in growth.
Humidity usually rises with the lights off because the temperature drops. If the exhaust fan is turned down too much at night, the risk of condensation on dense leaves, walls and flowers increases. The guide on dew point and condensation explains why an acceptable value during the day can become a problem hours later.
Extraction and CO₂: when they are compatible and when they get in the way
Providing CO₂ while continuously extracting air can waste much of the gas. In an open closet that depends on room air, the priority is to renew, control heat and humidity, and ensure fresh air. Enrichment makes the most sense in well-sealed or semi-closed environments, with coordinated climate, metering, and cycling.
The DIY CO2Gro 12L CO₂ Generation System It incorporates a generating bottle, bubble counter with solenoid and accessories to regulate the contribution. It does not replace ventilation or correct a bad temperature. Before using it, make sure you can measure the concentration and that the lighting, nutrition and climate allow you to take advantage of this enrichment.
In a semi-closed strategy, the exhaust fan can remain at minimum speed and increase when the temperature or humidity exceeds the limit. The CO₂ supply must be stopped during intense extraction and during the dark period. Without coordination, the system consumes more and offers less result. In a simple domestic setup, it is usually more profitable to first optimize renovation, airtightness, light and environmental control.

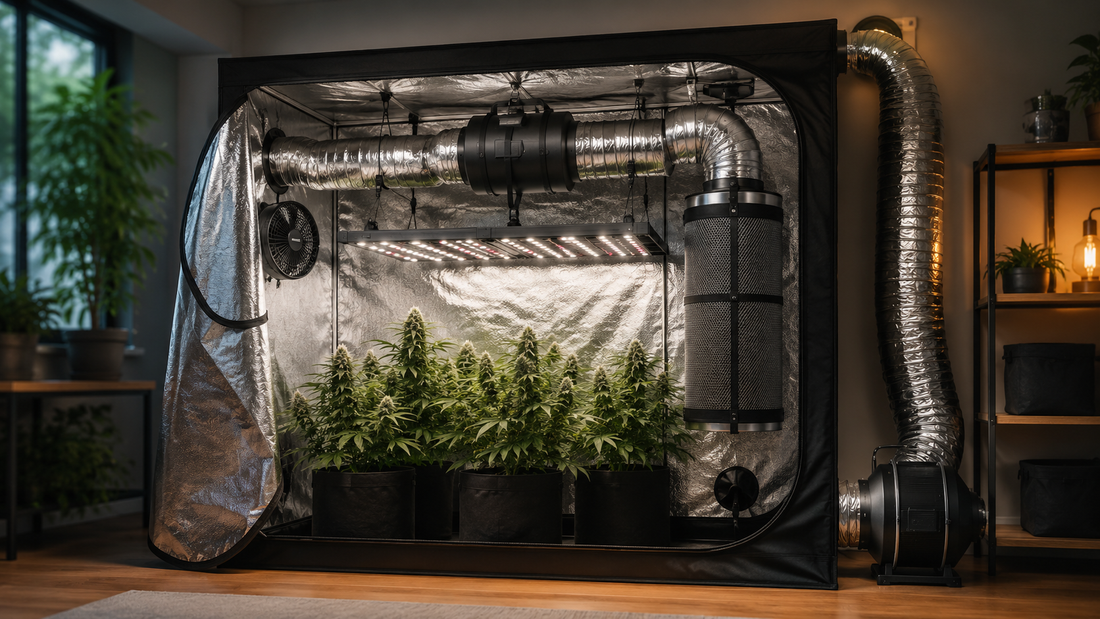

Correct installation inside the cabinet
Place the extraction in the high area, where hot air accumulates. The carbon filter is usually installed inside the cabinet, connected to the extractor fan so that the air first passes through the filter and then leaves. This configuration maintains negative pressure and filters possible line leaks. When space is limited, some installations place the filter or extractor outside, but they must maintain the tightness and respect the indicated flow direction.
The passive inlet must be located in the low and opposite area to favor a diagonal air path. Indoor fans are not a substitute for extraction: they mix the air and prevent stagnant pockets, but they do not introduce new oxygen or eliminate humidity. If you are still defining the set, the guide on how to set up an interior in a room Helps organize closet, lighting, ventilation and control.
Check all joints with clamps or appropriate aluminum tape. A leak before the filter allows raw odors to escape; A subsequent leak reduces efficiency and may introduce unfiltered air depending on the configuration. Leaves access to clean, check wiring and replace the filter without disassembling the entire installation.
Errors that cause a bad purchase
- Choose only by square meters. Height changes volume and lighting changes thermal load.
- Use the nominal flow as actual flow. The filter and ducts reduce the available performance.
- Buy the wrong diameter. Reductions add noise, turbulence and pressure loss.
- Confuse extraction with internal ventilation. Both systems are necessary and fulfill different functions.
- Turn off completely overnight. Humidity can rise when the temperature drops.
- Install a filter with a lower capacity. It limits the system and can reduce the efficiency of the carbon.
- Oversize without controller. Excessive flow can dry out the environment and increase noise.
- Ignore the air in the room. You cannot extract fresh air if the outside room is already hot or humid.
When the main challenge is humidity, increasing extraction can help if the outside air is drier. If the room is also humid, you will need dehumidification. The guide on how to lower humidity indoors explains how to distinguish both cases.
Maintenance to conserve flow
Check every week that the inlets are not blocked, that the duct retains its shape and that there are no new vibrations. Clean prefilters based on the environment and replace charcoal when it stops controlling odors, not just by calendar. A loaded prefilter increases resistance and makes the exhaust fan work harder to move less air.
Records temperature and humidity at various times of the cycle. A system that worked well at the beginning may fall short when the plant mass increases or summer arrives. Measuring allows you to anticipate change and take advantage of the reserve of adjustable equipment instead of replacing it late.
Frequently asked questions about cabinet extraction
Is it better to buy a more powerful extractor and regulate it?
This is usually a good strategy if the model supports compatible regulation. Working at moderate speed reduces noise and leaves room for heat, humidity or more restrictive filters. It is not advisable to oversize extremely because it increases the cost, size and difficulty of control.
How often should the air be renewed?
As a reference, between one and three times per minute depending on thermal load and phase. In many LED installations, a renewal begins every two minutes and is corrected with measurements. A dense crop, warm room, or HPS setup may require more flow.
Should the extractor fan be on at night?
Yes, a minimum extraction should normally be maintained. When the lights go off, the temperature drops and the relative humidity may rise. The controller can reduce speed, but shutting down for hours encourages stagnant air, condensation, and loss of negative pressure.
What diameter do I need?
The diameter must match the extractor, filter and duct. For the same flow rate, a larger diameter reduces air speed, losses and noise. Avoid reductions unless they are essential and use smooth transitions.
Can I install the extractor outside the cabinet?
Yes. It can free up space and reduce noise inside, as long as the connections are tight, the equipment is well supported and the direction of flow is respected. Also consider where the filter, maintenance and air discharge will be.
How do I know if the extraction is insufficient?
The usual signs are high temperature, humidity that takes time to lower, walls without slight depression, odor outside the filtered circuit and strong differences between areas. Check first for obstructions, filter and ducts before concluding that there is a lack of power.
Does an exhaust fan eliminate the need for a dehumidifier?
Not always. It only reduces humidity if the incoming air contains less vapor than the indoor air. On humid days or closed rooms, the extraction may not be sufficient and a dehumidifier sized for the actual load will be necessary.
Where can I compare more options?
In the collection of air extractors for indoor growing You can review diameters, flow rates and formats to adapt the choice to the size of your cabinet and the resistance of the system.
