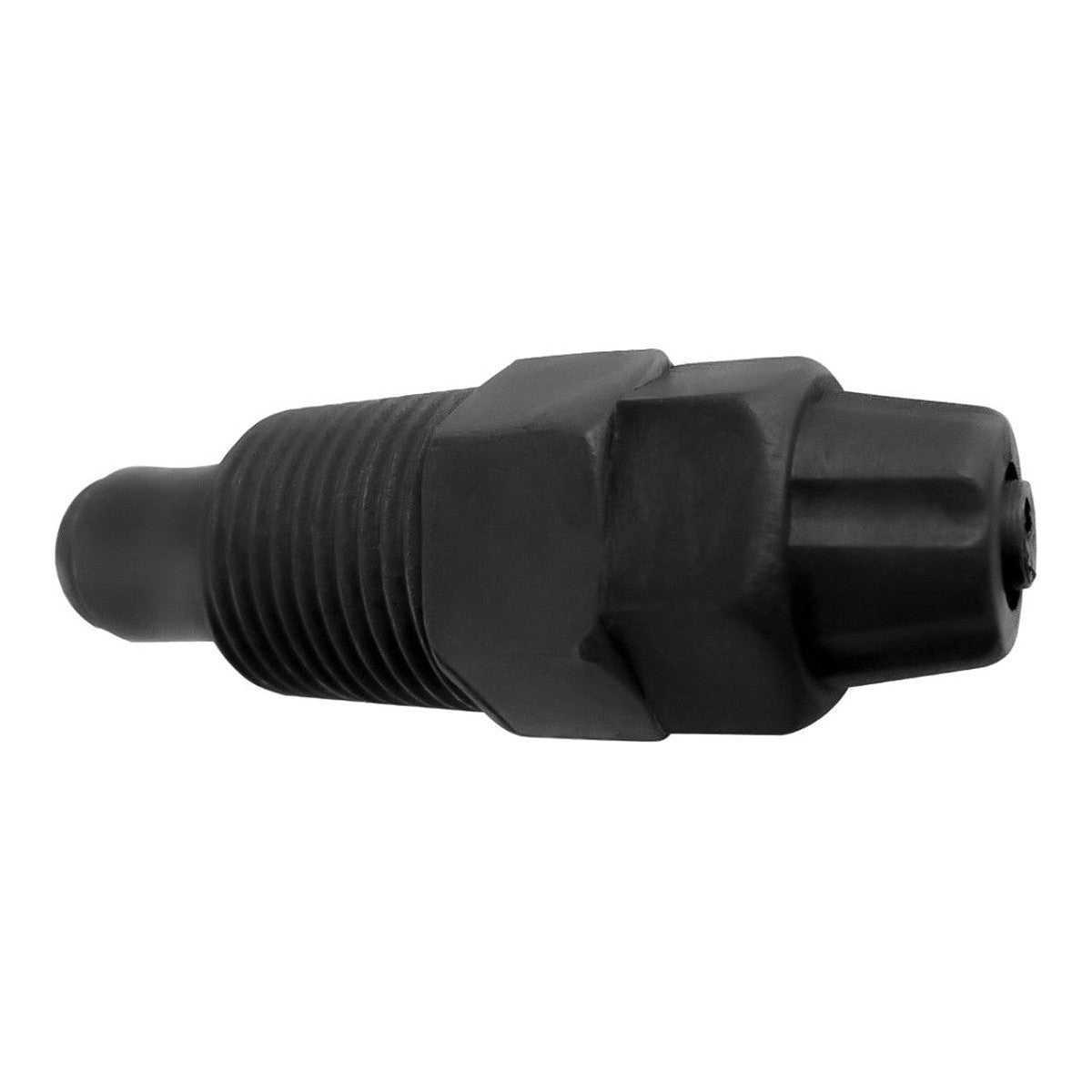

Aquamaster 1/2" Injection Valve – Non-Return Injection Point for Dosing Pumps
Aquamaster 1/2" Injection Valve – Non-Return Injection Point for Dosing Pumps
-
Type: Injection valve with non-return
-
Size: 1/2 inch, Ø 12.7 mm
-
Material: PVC
-
Use: Injection point for C10, C20 and C30 dosing pumps
-
Weight: Estimated 0.2 kg (the supplier states 200 kg due to a typo)
Discover the benefits of the PRO CLUB
Discounts of up to -12%, priority shipping and more.
Easy returns within 15 days
No questions asked
Description
- ⚙️ Integrated non-return valve: Prevents water in the circuit from flowing back to the pump.
- 🧪 Exact dosage: Prevents the concentrate container from being diluted.
- 💧 1/2" PVC: Ø 12.7 mm passage for pressurized lines.
- 🔄 Protects the pump: The head does not work against backflow.
An inexpensive part that prevents the concentrate from being diluted and protects the dosing pump from damage.
Full description
1/2-inch PVC injection valve (Ø 12.7 mm) with integrated non-return valve. This is the point through which the dosing pump introduces the pH corrector or concentrated fertilizer into the circuit piping.
Why the non-return valve is not optional
It is the part that prevents the circuit water from flowing back up the dosing tube into the pump and into the product drum. Without it, when the pump stops, the line pressure pushes water backward, and two bad things happen: the acid or concentrated fertilizer drum becomes diluted without you knowing, which means the dosing is no longer accurate, and the peristaltic tube and pump head suffer from working against backflow.
In systems with concentrated acids, there is one more reason: backflow into the product drum can cause a reaction if that drum contains another concentrate. It is an inexpensive part that protects the rest of the system.
Weight note: the supplier lists 200 kg for this reference, an obvious confusion between grams and kilograms. The actual weight is around 0.2 kg, which is the estimated weight we have entered.
No product image: the supplier does not publish a photograph of this part.
Warranty
At GrowIndustry we only work with proven quality products and trusted brands.
Every item goes through a check before shipping to make sure it arrives in perfect condition and ready to use.
Your satisfaction is our priority.
How to use
1. Reduce the flow and depressurize the section before working on it.
2. Choose a point downstream from the irrigation pump with good mixing.
3. Thread the valve into the 1/2-inch pipe and seal the joint.
4. Connect the dosing pump's outlet pipe to the valve.
5. Pressurize and check that there are no leaks or visible backflow.
6. Inspect the check valve every 6 months and clean out salt deposits.

Aquamaster 1/2" Injection Valve – Non-Return Injection Point for Dosing Pumps
Join our exclusive club for regular customers and start enjoying unbeatable prices, VIP service and premium support for your grows.
Increasing discounts
Save an extra -3% to -12%
Envío gratis antes
Desde 39 € en Bronze y sin mínimo en Platinum (hasta 10 kg)
Fast deliveries
With free, discreet shipping
Extended warranty
Up to 3 years
Frequently asked questions
-
It is a 1/2 inch (Ø 12.7 mm) PVC valve with a built-in non-return device. It works as an injection point: it is the part through which the dosing pump introduces the pH corrector or the concentrated fertiliser into the circuit pipework. A small part, but a key one for clean, accurate dosing.
-
The non-return device stops water from the circuit travelling back up the dosing tube towards the pump and the product container. When the pump stops, line pressure tends to push water backwards, and this valve blocks it. That is why in this kind of installation it is not an optional extra but a basic protection.
-
Two things, and both are bad. First, the drum of acid or concentrated fertiliser gets progressively diluted by the returning water without you noticing, so the dosing stops being accurate. Second, the peristaltic tube and the pump head suffer from working against that back pressure.
-
Yes, in that case there is an added reason to fit it. Water flowing back into the product container can cause a reaction if that container holds another concentrate. It is a part costing a few euros that protects the rest of the installation.
-
No, it is an obvious mix-up of grams with kilos in the supplier's data sheet. The real weight of this valve is around 0.2 kg, and that is the figure we have entered as the estimated weight. You can buy it with confidence: it is a lightweight PVC part.
-
The supplier does not publish a photograph of this reference, which is why the listing has no image. Even so, it is the 1/2 inch PVC injection valve with a non-return device described in the listing. If you have any doubts before buying, our customer service team is here Monday to Friday, 10:00 to 19:00.
