Cli-Mate Hybrid Temperature Controller 3 Speeds 4A

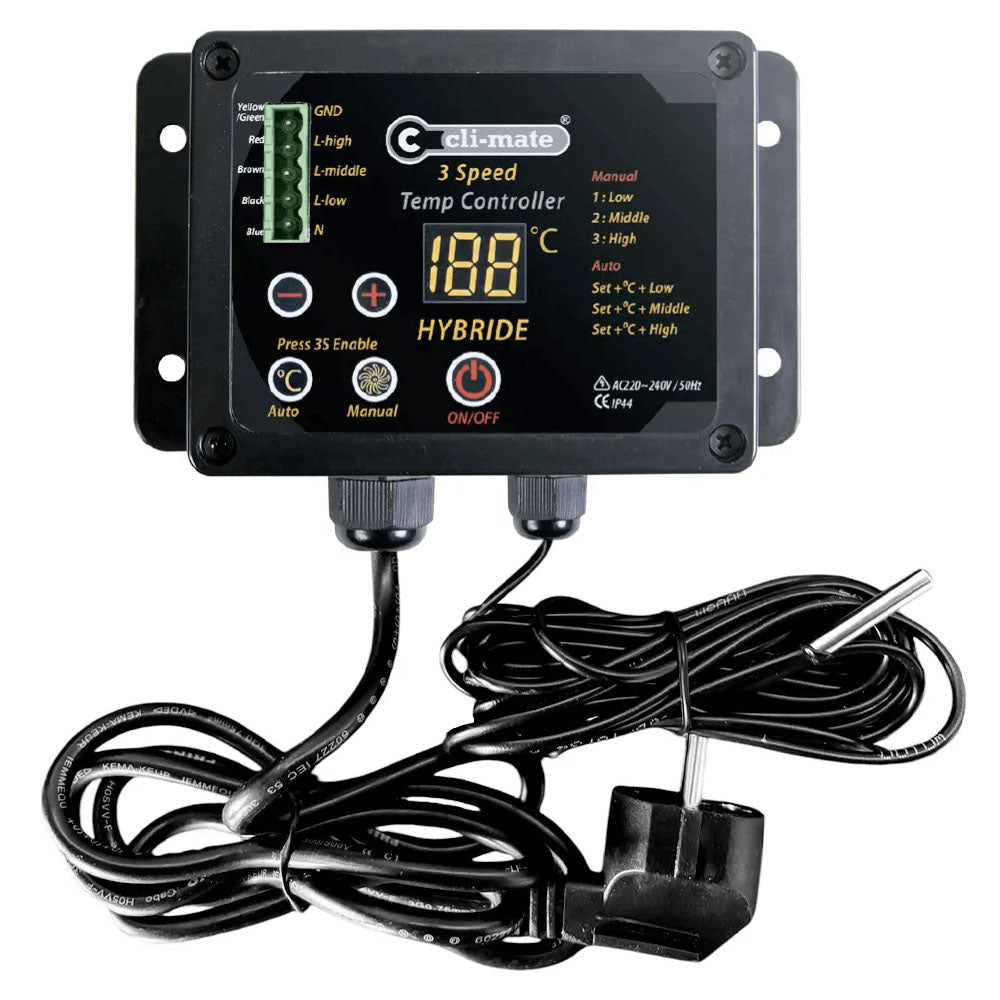

Cli-Mate Hybrid 3-Speed 4A Temperature Controller

The Cli-Mate Hybrid 3-Speed 4A Temperature Controller automatically adjusts your extractor fan's speed across three settings based on the temperature of the grow space. It includes a thermostat with a probe and two independent potentiometers to set both the target temperature and minimum speed, providing precise climate control without the need for constant manual adjustment. It is a practical solution for small and medium-sized grow rooms seeking quieter, automated ventilation.

Benefits

• Automatic temperature control. Adjusts the extractor fan's speed across three settings based on the detected temperature.
• Reduces operating noise. The motor runs at a lower speed when maximum extraction is not required.
• Energy savings. Prevents the extractor fan from unnecessarily running at full speed all the time.
• Independent adjustment. Two potentiometers allow you to set the temperature and minimum speed separately.
• Suitable for extractor fans up to 2,500 m³/h. Meets the needs of small and medium-sized grow rooms.

Key Features

• Automatic 3-speed control based on temperature.
• Thermostat with temperature probe included.
• Two independent potentiometers: target temperature and minimum speed.
• Suitable for extractor fans up to 2,500 m³/h.
• Reduces motor wear by preventing it from always running at maximum speed.

Technical Specifications

• Power supply: 220-240V / 50Hz
• Maximum current: 4A
• Maximum supported power: 800W
• Temperature range: 0-40 ºC
• Protection: IP44
• Dimensions: 120 x 60 x 50 mm
• Weight: 0.5 kg
• Includes: temperature probe

How to Use

• Installation. Install the controller in an accessible area near the extractor fan.
• Connection. Connect the extractor fan to the unit's output and position the temperature probe.
• Set the target temperature. Set the desired temperature using the corresponding potentiometer.
• Set the minimum speed. Set the base speed for continuous ventilation.
• Verification. Check that the extractor fan changes speed as the temperature varies.
• Maintenance. Periodically check the probe and connections to ensure stable operation.

At GrowIndustry we only work with proven quality products and trusted brands.

Every item goes through a check before shipping to make sure it arrives in perfect condition and ready to use.

Your satisfaction is our priority.

1. Place the probe near the upper area of the plants for a reliable temperature reading.
2. Set the desired temperature, for example around 25ºC depending on the growing conditions.
3. Set the extractor to its minimum speed, normally between 30% and 40%.
4. Connect the extractor to the Fan Controller and the controller to a power outlet.
5. During hotter periods, increase the extraction if necessary; at times of lower demand, reduce the speed to save energy and reduce noise.
