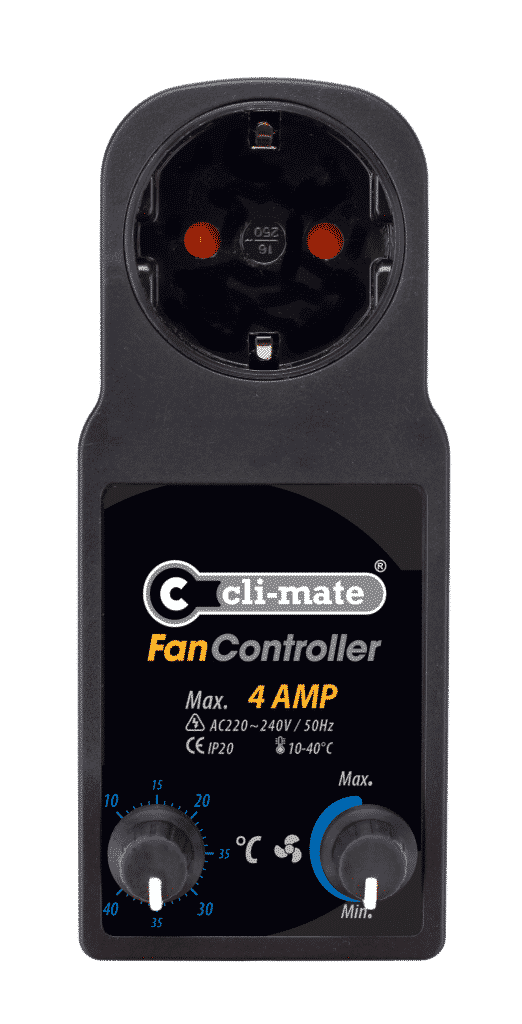

Fan Controller with Thermostat 4A - Cli-Mate

Fan Controller with Thermostat 4A - Cli-Mate

The Fan Controller with Thermostat 4A by Cli-Mate is a two-speed ventilation controller designed for growers who need simple, reliable temperature control in small cabinets or tents with a single extractor fan. It combines a fixed minimum speed, adjusted via a potentiometer, with a thermostat that activates the maximum speed as soon as the set temperature is exceeded, thanks to the included temperature probe. It solves the problem of fixed ventilation or heat buildup without the need for complex digital controllers.

Benefits

• Simple automatic control. Just two rotary dials are needed to set the minimum speed and the trigger temperature.
• Protects the crop from heat spikes. The extractor fan switches to maximum power as soon as the temperature exceeds the set value.
• Reduces motor wear. It runs at minimum speed the rest of the time, instead of always running at maximum.
• Temperature probe included. Allows you to place the measuring point exactly where it is needed most.
• Ideal for small spaces. Designed for grow cabinets and tents with a single extractor fan.

Key Features

• Two-speed ventilation control: fixed minimum and thermostat-controlled maximum.
• A potentiometer for the extractor fan's permanent minimum speed.
• A thermostat to set the maximum speed activation temperature.
• Temperature probe included for accurate measurement.
• Compact design that is easy to install in any cabinet or tent.
• Compatible with AC extractor fans up to 4A.

Technical Specifications

• Power supply: 220-240V / 50Hz
• Maximum current: 4A
• Temperature range: 10-40 ºC
• Protection: IP20
• Weight: 0.5 kg
• Includes: temperature probe

How to Use

• Mounting. Install the controller in a dry, accessible area near the extractor fan.
• Connection. Connect the extractor fan to the controller's output and place the temperature probe at the point to be monitored.
• Minimum speed adjustment. Turn the potentiometer to set the permanent base ventilation speed.
• Thermostat adjustment. Set the temperature at which the extractor fan should switch to maximum power.
• Verification. Check that the extractor fan changes speed when the set temperature is reached.
• Maintenance. Periodically check the probe and connections to ensure stable operation.

At GrowIndustry we only work with proven quality products and trusted brands.

Every item goes through a check before shipping to make sure it arrives in perfect condition and ready to use.

Your satisfaction is our priority.

1. Connect the Fan Controller to the power supply and the extractor fan to the unit.
2. Place the temperature probe at the point where you want to measure the ambient temperature.
3. Set the thermostat to the desired temperature.
4. Adjust the potentiometer to set the minimum fan speed.
5. The unit will automatically increase the extractor fan speed when the set temperature is exceeded.
