Grow Industry Complete CO₂ Kit with 4 or 8 Burners – CO₂ Combustion System for Indoor

Professional CO2 Enrichment Kit: Precise Control and Maximum Performance

Take your growing to the next level with this Complete CO2 Enrichment Kit, designed for growers looking to maximize the rate of photosynthesis, accelerate vegetative growth and significantly increase the weight of their crops. This system integrates digital control technology with high safety combustion components.

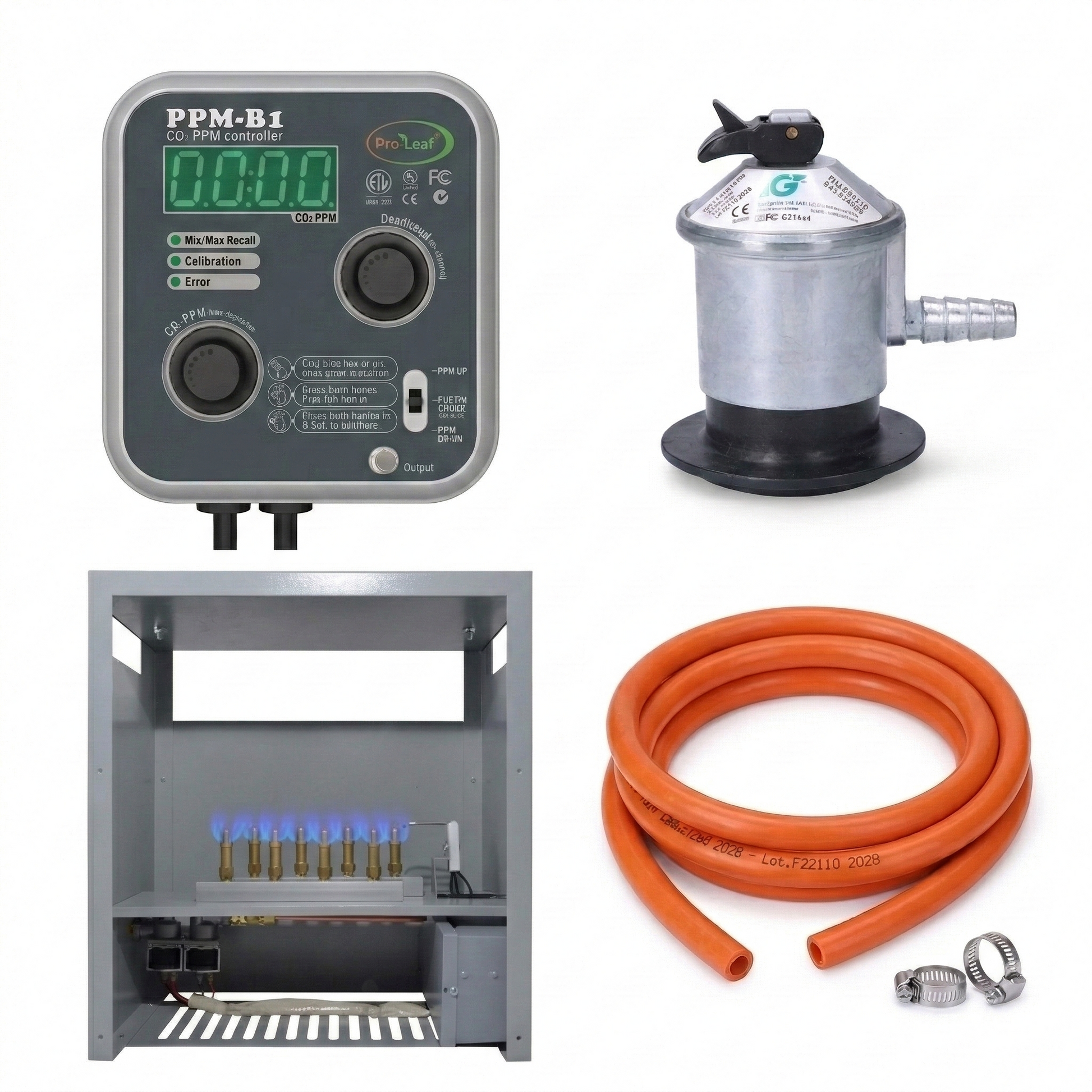

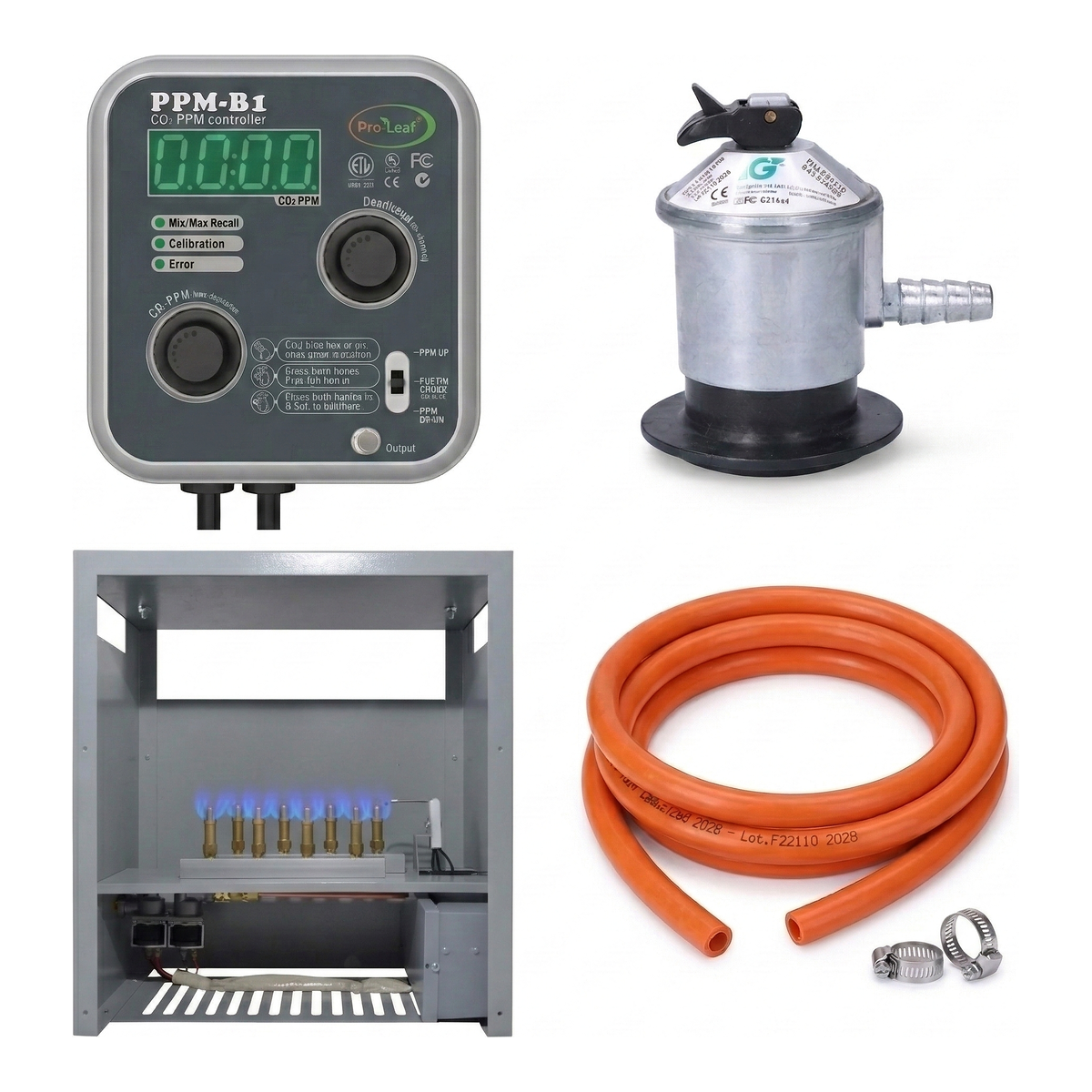

What does this Professional Kit include?

The system is made up of four fundamental elements, selected to offer automated and safe management of carbon dioxide in your grow room or tent:

• Pro-Leaf PPM-B1 Digital Controller: The brain of the system that monitors and maintains CO2 levels in real time.

• High Capacity Gas Burner: Robust unit with 8 brass nozzles and safety system for efficient CO2 production.

• LPG Gas Regulator: Heavy duty metal device for stable and safe gas flow from the bottle.

• Safety Connection Kit: Includes reinforced orange technical hose and stainless steel clamps for leak-free installation.

Detailed Technical Specifications

1. Pro-Leaf PPM-B1 CO2 Controller

This intelligent controller allows for fully automated management.

• Digital Display: Clear display of current PPM (parts per million) levels in the environment.

• Control Range: Adjustable 400 to 2000 PPM to adapt to any phase of cultivation.

• Deadband Function: Adjustable hysteresis range between 50 and 500 PPM to avoid unnecessary turning on and off of the equipment.

• Min/Max Memory: Records the highest and lowest values detected for comprehensive monitoring.

2. CO2 Generator/Burner (8 Nozzles)

Designed to transform gas cleanly and efficiently.

• Security Structure: Gray metal chassis that protects the internal components and facilitates heat dissipation.

• Precision Combustion: 8 brass nozzles that generate a constant blue flame for CO2 production without harmful waste.

• Dual Solenoid Valves: Double closure system to ensure that gas only flows when the controller demands it.

3. Security and Connection

• Gas Regulator: Aluminum body with ribbed connection nipple for a perfect fit with the hose.

• Technical Hose: Certified for liquefied gases, with visible expiration date to ensure long-term material integrity.

• W2 clamps: Made of 12 mm stainless steel to ensure an airtight seal at both ends of the system.

Benefits of using the Pro-Leaf CO2 Kit

1. Production Increase: The extra CO2 allows plants to process more light and nutrients, resulting in denser flowers.

2. Thermal Resistance: Plants enriched with CO2 tolerate slightly higher temperatures better (up to 30-32°C).

3. Easy Installation: Thanks to its "Plug & Play" components, assembly is done in just a few minutes without the need for complex tools.

Configuration and Optimal Use Guide

To get the best results with your Pro-Leaf CO2 Kit, it is essential to adjust the levels according to the life stage of your plants. The controller PPM-B1 allows you this precision in a simple way.

Recommended PPM Levels by Phase

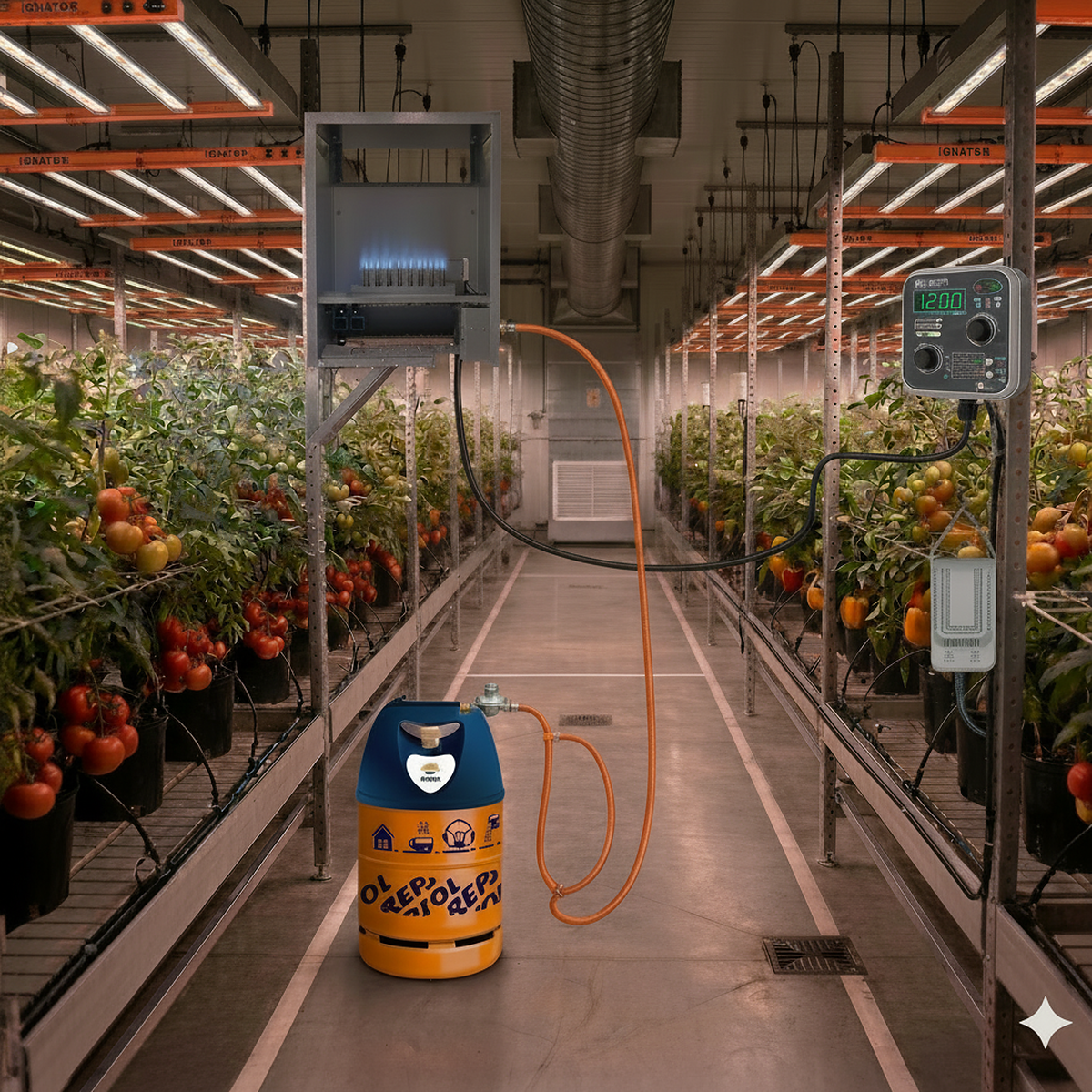

Secure Installation Tips

• Sensor Location: Place the controller PPM-B1 at the height of the tips of the plants, since CO2 is heavier than air and tends to sink.

• Synchronization: Set the system to only activate during business hours light. Plants do not photosynthesize in the dark and CO2 would be wasted.

• Temperature: When using the 8 nozzle burner, the room temperature will rise slightly. Make sure you have efficient extraction or air conditioning, as CO2 plants perform better between 28°C and 30°C.

• Maintenance: Always check the expiration date of the orange hose (valid until 2028 in this kit) and make sure the steel clamps are firmly tightened to prevent leakage of liquefied gas.
