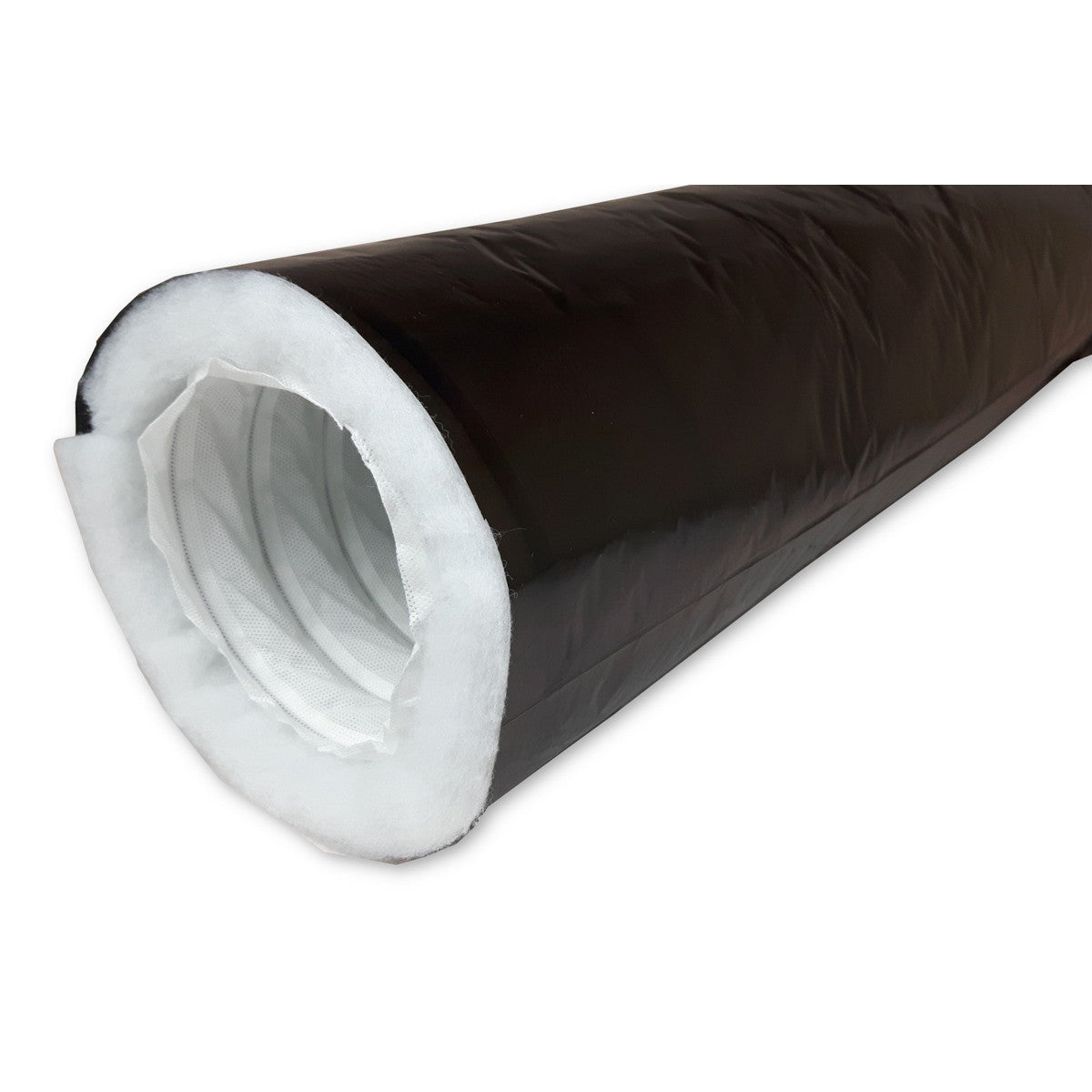

VDL Sono-Trap – Soundproofed and Insulated Flexible Duct for Quiet Extraction

VDL Sono-Trap – Soundproofed and Insulated Flexible Duct for Quiet Extraction

Regular price 27,43 €
Black Friday price 23,95 € Reference price 27,43 €−12 %
Out of stock
Black Friday price available on 27/11 · Get early access with Pro Club or by joining the early access list
Pay in one tap with Bizum — no extra fees.
Is this product for you?
  • Type: Sound-attenuated and insulated flexible duct

  • Inner liner: Polypropylene fabric

  • Reinforcement: Steel wire helix

  • Diameters: From 102 to 406 mm

  • Lengths: 3, 6 and 10 m

  • Applications: Ventilation and air treatment

Size: Ø102 mm - 3 m
Quantity

Description

  • 🔇 Silent extraction: Reduces the noise transmitted through the duct by the extractor fan.
  • 🌬️ Thermal and acoustic insulation: Flexible duct insulated along its entire length.
  • 🛡️ High resistance: Polypropylene fabric with a high-carbon steel helix.
  • 📏 12 sizes available: From Ø102 to Ø406 mm, in lengths of 3, 6 and 10 m.
  • ⏱️ Quick installation: Mounted with standard clamps and requires almost no maintenance.

VDL Sono-Trap: the soundproofed and insulated flexible duct that silences your extraction without complicating the installation.
Full description

VDL Sono-Trap – Soundproofed and Insulated Flexible Duct

The VDL Sono-Trap is a fully flexible duct, thermally and acoustically insulated, designed for ventilation, air conditioning, and air treatment installations. Its inner duct is made of polypropylene fabric and encapsulates a high-carbon steel wire helix, which gives it high mechanical and thermal resistance without sacrificing flexibility. In indoor growing, it is the standard solution for reducing the noise that the extractor transmits through the duct.

Key features

  • Reduces extractor noise: the acoustic insulation dampens the sound traveling through the inside of the duct, the main source of noise in an extraction system.
  • Thermally and acoustically insulated: the duct is insulated along its entire length, which also helps prevent temperature transfer between the air inside the tube and the room.
  • Completely flexible: it adapts to curves and complicated routes without the need for additional accessories.
  • High mechanical resistance: the high-carbon steel wire helix maintains the duct's cross-section and withstands continuous use.
  • Quick installation and low maintenance: it connects with standard clamps and requires almost no maintenance once installed.

Technical specifications

  • Type: soundproofed and thermally insulated flexible duct.
  • Inner duct: polypropylene fabric.
  • Reinforcement: high-carbon steel wire helix.
  • Available diameters: Ø102, Ø127, Ø152, Ø160, Ø203, Ø315 and Ø406 mm.
  • Available lengths: 3, 6 and 10 m depending on the diameter.
  • Applications: ventilation, air conditioning, and air treatment.
  • Brand: VDL.

Available sizes

  • Ø102 mm - 3 m: 1.45 kg
  • Ø102 mm - 6 m: 3.00 kg
  • Ø102 mm - 10 m: 6.00 kg
  • Ø127 mm - 6 m: 3.48 kg
  • Ø127 mm - 10 m: 6.50 kg
  • Ø152 mm - 3 m: 2.00 kg
  • Ø152 mm - 10 m: 7.00 kg
  • Ø160 mm - 3 m: 2.50 kg
  • Ø160 mm - 6 m: 4.50 kg
  • Ø203 mm - 6 m: 5.00 kg
  • Ø315 mm - 10 m: 8.50 kg
  • Ø406 mm - 6 m: 7.00 kg
Warranty

At GrowIndustry we only work with proven quality products and trusted brands.

Every item goes through a check before shipping to make sure it arrives in perfect condition and ready to use.

Your satisfaction is our priority.

How to use

1. Measure the distance between the extractor fan and the air outlet, and choose the appropriate diameter and length.
2. Cut the duct to the required length, leaving a little extra for bends.
3. Connect one end to the outlet of the extractor fan or carbon filter.
4. Secure the connection with a metal clamp and tighten until it is firmly attached.
5. Run the other end to the air outlet, avoiding sharp bends and kinks.
6. Secure that end with a clamp as well, and check that the entire run is free from kinks.
